Product Details:
Minimum Order Quantity | 1 Piece |
Laser Type | CO2 |
Cooling System | Water Cooled |
Brand | SIL |
Cutting Depth | 0.5-20 mm |
Dimension | 1220 x 1220 mm |
Driving Mode | CNC |
Input Power | 230V |
SIL laser engraving machine is versatile & finds application in signage, indoor & outdoor advertisement, art & craft, gift, shoes, toys, garments, model cutting, papers & packaging, wood & MDF cutting industry, interior, decorators and many more. SIL built laser engraver which is engineered & manufactured in india. SIL laser systems can be configured with two types of lasers, Glass Tube & Metal Tube.
Glass Tube: The glass tube lasers are of very high quality, compact and come with warranty period of 6 months.
Metal Tube: All metal tube lasers are RF excited with option of water cooling. Metal tube covers a warranty of 24 months.
SIL series incorporates DSP based stand alone control system for offline work with 32 mb file space & easy to use printer driver software. The machine can print directly from AutoCAD, CorelDRAW, Photoshop etc.
Printing real pictures, deep engraving, gradient engravings are the main features.
High speed belt drive plotting unit with precise micro stepping drives.
Rotary, Image Auto Tracing Camera, Two Laser Head, Four Laser Head, Honey comb are optionals
Working table: 1300 X 2500 mm/ 1200 X 1200 mm/ 1300 X 900 mm/ 600 X 900 mm/ 600 X 400 mm.
Additional Information:
Product Details:
Minimum Order Quantity | 1 Unit |
Model Name/Number | SIL-20-IPG |
Usage/Application | All kinds of Metal Marking |
Laser Type | Fiber Laser |
Marking Depth | 1.2 mm |
Repeated Accuracy | +-0.003 mm |
Marking Speed Capacity | 7000 mm/s |
Automation Grade | Automatic |
Marking Area | 100 x 100 mm |
Laser Wave Length | 1064 nm |
Laser Power | 20 Watt |
Marking Accuracy | +-0.003 mm |
Laser Cooling | Air-Cooling |
Pulse Repetition Rate | 20 - 400 KHz |
Operating Temprature | 15 Degree - 35 Degree C |
Fumes Suction | Optional Available |
Spot Diameter | <0.05 mm |

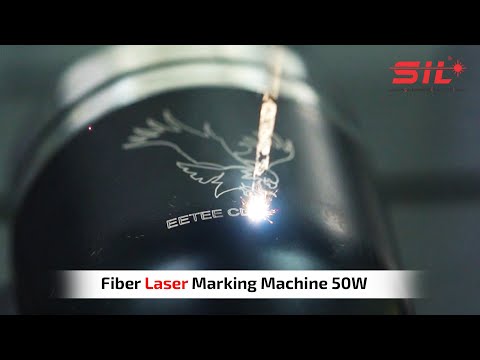

Advantage of Fiber Laser Marking Machine
Highest Wall Plug Efficiency. Compared to another laser technology available. Power up to 120 Watts in CW and Pulsed. High beam Quality. High repetition rate. Very stable and consistent repeatability. Make in India, Pan India Sales & Service Office. Maintenance free operation with 1 year of unlimited usage warranty. Very small footprint & No water-cooling.
Product Details:
Minimum Order Quantity | 1 Unit |
Model Name/Number | SIL-20-IPG |
Laser Type | Fiber Laser |
Marking Depth | 0.1 to 2mm |
Repeated Accuracy | +-0.01mm. |
Automation Grade | Automatic |
Marking Area | 110*110 mm |
Laser Wave Length | 1064 nm |
Laser Power | 20 watt |
Speed | <7000 mm/s |
Cooling System | Air-Cooling |
Marking Accuracy | 0.01mm |
Support Format | PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF |
Ambient Temperature | 15 Degree C - 35 Degree C |
Electrical | 220V or 110v +- 10%,50/60 HZ |
